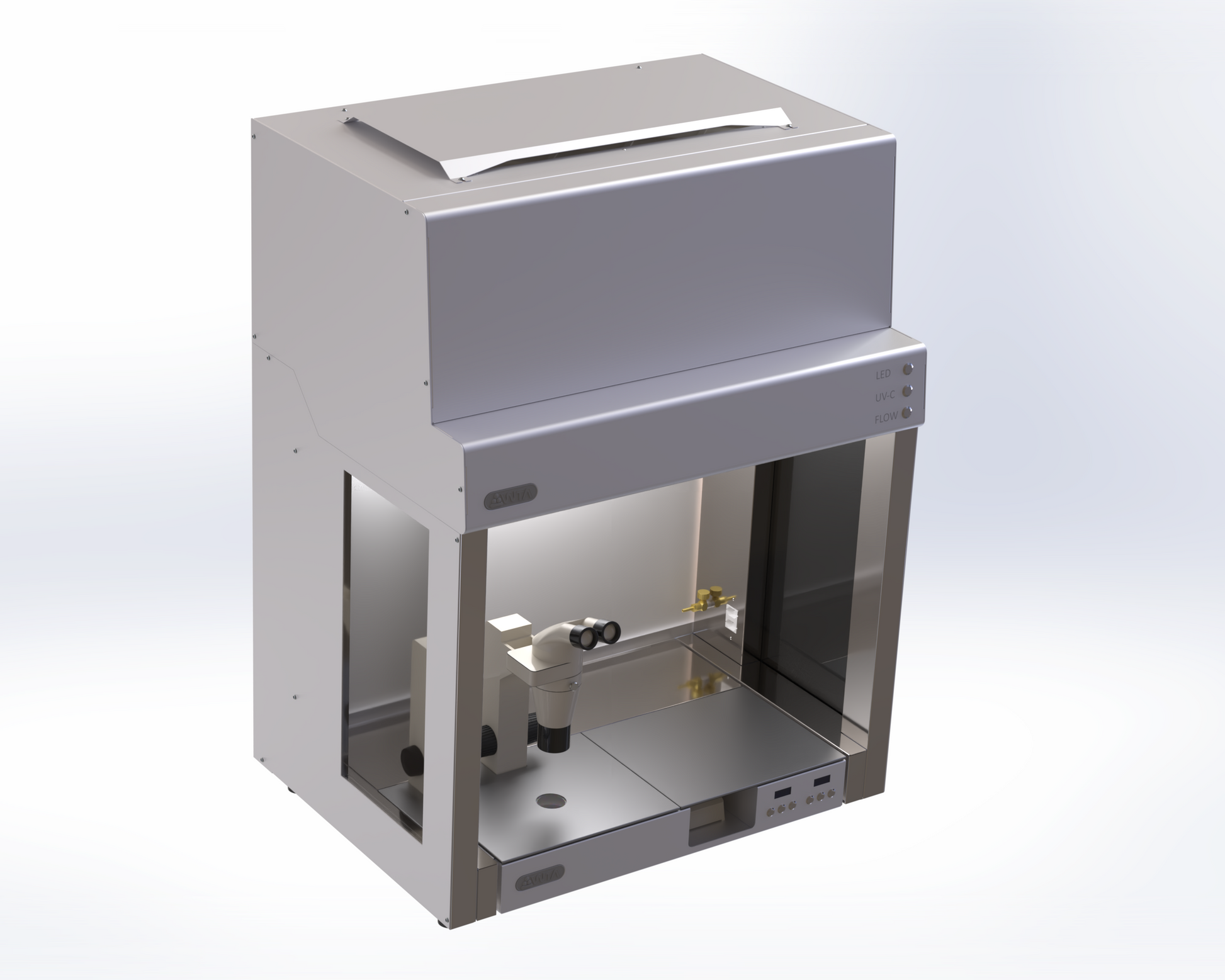

Laminar Flow Cabinet – ISO Class 5

This horizontal laminar flow cabinet is designed to provide a highly clean and controlled working environment, ensuring optimal product protection for processes that require sterile conditions. Its HEPA filtration system and horizontal airflow deliver consistent, particle-free air in compliance with ISO Class 5 standards.

Key Features:

• External dimensions (W × D × H): 73.7 × 98.8 × 128.4 cm

• Working area (W × D × H): 56.2 × 84.8 × 63.8 cm

• Airflow direction: Horizontal

• Cleanliness classification: ISO Class 5

• Approximate weight: 75 kg

Construction materials:

• Anodized aluminum

• Stainless steel

• Transparent acrylic

• Non-toxic polymers

Filtration system:

• HEPA H14 filter with 99.995% efficiency at 0.3 µm

• G4 pre-filter

• Airflow velocity: 0.45 – 1.2 m/s

• Electronic airflow speed control

Lighting and power:

• UV-C germicidal lamp 15 W (G13)

• White LED lighting 9 W (G13)

• Power consumption: 810 W

Temperature control:

• Operating temperature range: 34 – 39 °C

• Temperature variation: ±0.5 °C

This laminar flow cabinet is ideal for animal reproduction laboratories, biological material handling, media preparation, and other applications requiring a sterile working area, offering reliability, efficiency, and precise environmental control.
